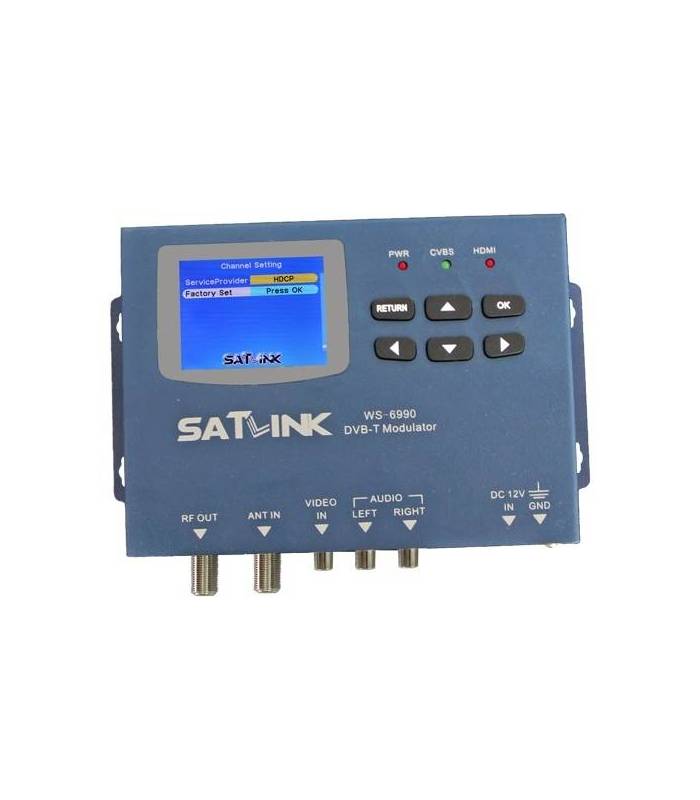

SATLINK WS-6990 DVB-T Modulator

WS-6990

New product

165,83 €

This product is no longer in stock

More info

• High level of integration, high-performance, Full-featured, integrated design
• Single input modulator that converts analogue A/V source to a DVB-T channel
• Standard COFDM modulation and H.264 encoding
• Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
• Bandwidth: 6/7/8MHz
• Frequency range: 50~860MHz
• Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
• 2.4-inch color LCD display
• Small size and light weight
• Carriers 2K and 8K
• User friendly setup and control
• Compact and wall mountable

Modulator
Standard DVB-T
Constellation QPSK / 16QAM / 64QAM
Bandwidth 6 / 7 / 8 MHz
Carriers 2K / 8K
Guard Interval 1/4, 1/8, 1/16, 1/32
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 MER 35 dB
Frequency Range 50 ~ 860 MHz
Output Level 70 ~ 100 dBuV
Output Impedance 75Ω Video
Input Format CVBS/HDMI
Encoding Format H.264

Video
Resolution 576i PAL / 480i NTSC/1080p
Connector RCA/HDMI 1.3

Audio
Input Format Stereo L/R channel
Encoding Format MPEG-1 Audio Layer II
Connector RCA

General
Power Source DC 12V / 1.5A
Operating Temperature 0 ~ +50°C
Dimensions 155mm(L) × 114mm(W) × 33mm(H)
Weight 0.5Kg
