DENRG11-7 Coaxial Cable Stripper Coax Stripping Tool for RG59/6/7/11 / Reversible Cassette Cable Cutter Function

DENRG11-7

New product

9,90 €

This product is no longer in stock

More info

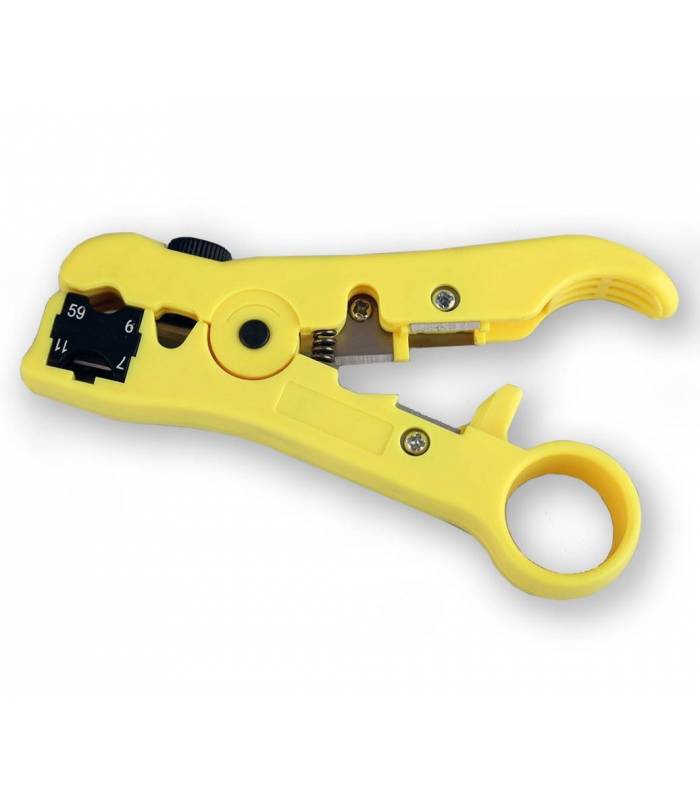

Cable stripper
.Adjustable stripping blade for different insulation thickness, prevents damage of shielding and conductor
.The cassette can be reversed to change different coaxial cable
.Strips UTP and STP cable,RG59/6/11/7 coaxial cable,flat telephone cable
.With cable cutter



Instructions:
4.9" long,UTP/STP cable and CAT.5 round telephone cable,RG59/6/11/7 cable stripper

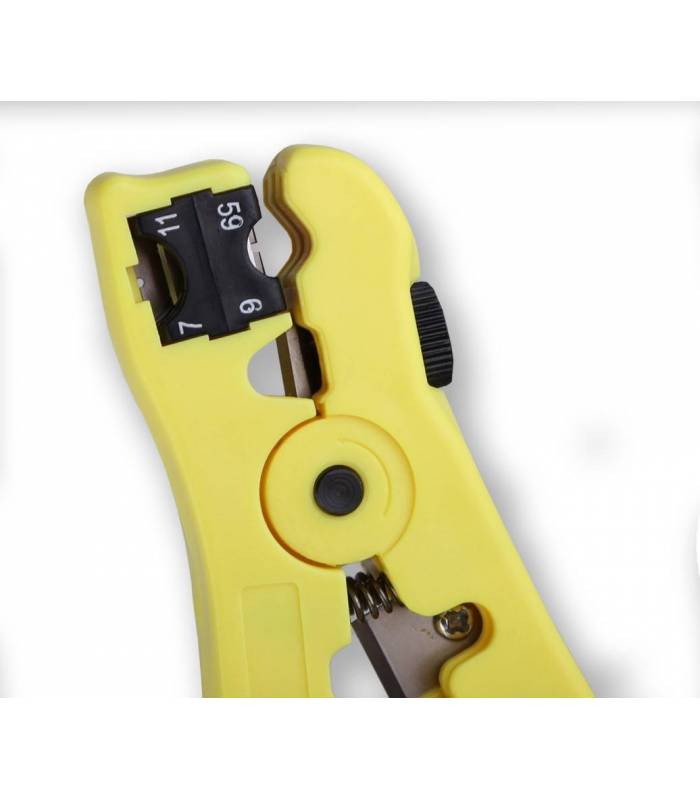

1.Cassette is reversible.One side is available for RG59/6 and another side is for RG7/11.
2.For stripping coaxial cable:
   a.Insert the cable until it aligns with the cable guide.
   b.Insert your index finger into the stripper's finger ring.rotate the stripper by counter clockwise 3-5 times.The cable insulation is cut while you are turning the stripper.
   c.Open the jaws and remove the cable.Pull away the outer jacket and dielectric to expose the inner conductor.
   d.Stripping distance is designed for 6mm.for each dielectric and inner conduct.
3.For stripping round networking cable:
   a.Insert the cable into the second stripping hole.rotate 1-3 times at counter clockwise. and then open the jaw and remove the outer jacket.

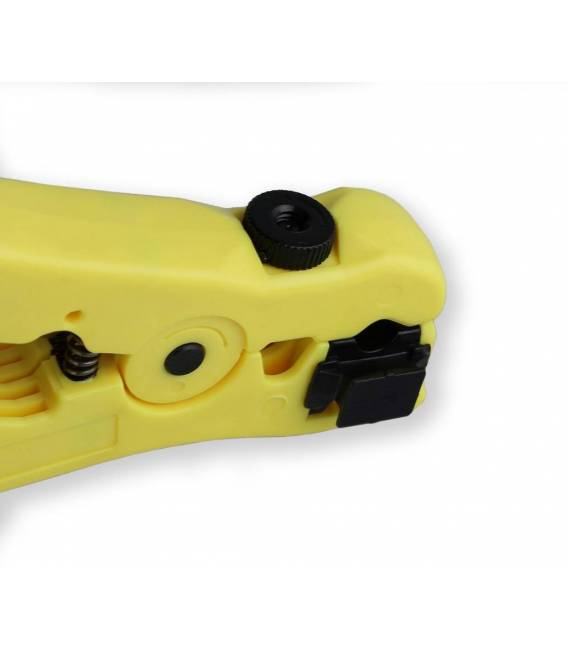

   b.The black color adjusting knob is for adjusting the blade's depth.Turn clockwise for increasing the blade's depth and counter clockwise for reducing the depth.
4.For cutting coaxial cable,Round networking cable or flat telephone cable,place the cable in position and then squeeze the handles.
5.For stripping flat cable.Insert the cable between the stripper blades.Squeeze handles.Cable must be kept perpendicular and then pull from the tool.
  Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade.

352RG-11/59/6
312B      RG-58/59/62/3C/4C
322

RG-58/59/6

332RG-58/59/62/6/6QS/3C/4C/5C
500R

8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11 PLUGS
