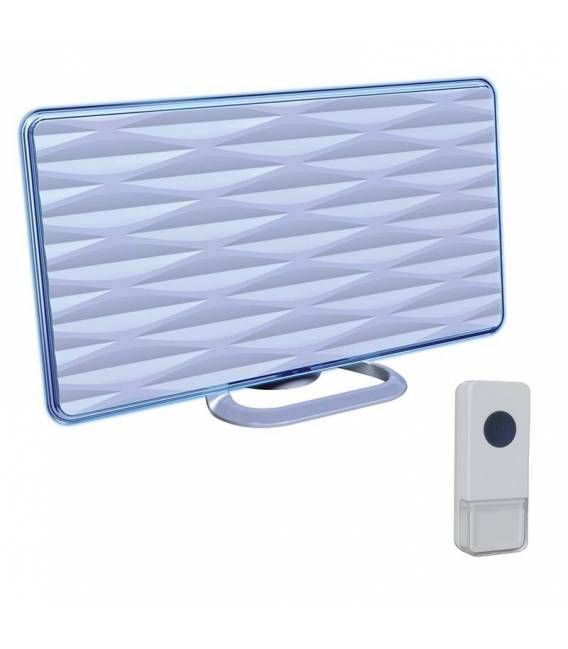

HD-935T Digital indoor TV antenna + In-Built Doorbell

HD-935T

New product

24,97 €

Including 0,05 € for green tax
This product is no longer in stock

More info

This is a special designed antenna for digital terrestrial TV broadcasting reception. It is the best solution for home reception and digital portable TV reception. This antenna is active that can be possible powered by external adapter, or by set-top box via coaxial cable.



Technical data :

Frequency range: VHF: 174~230MHz; UHF: 470-862MHz
Receiving range: FM/VHF/UHF
Gain: 28dB Max
Output level: 100dBμV MAX
Impedance:75 Ω
Noise Figure: ≤4.5dB

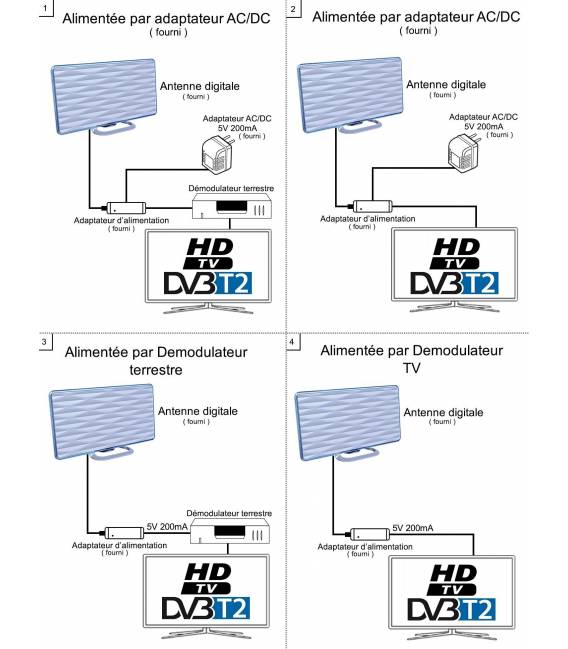

Power supply:via AC/DC adapter (DC12V/200mA) or
via DTV set-top box(DC5V/200mA)
Door Bell Auto-learning-code
Frequency Range: 315/433±0.5MHz
Active Pressure Wave(receiver): ≤-57dBm
Negative Pressure Wave(transmitter): ≤-36dBm
Reception Sensitivity: ≥-80dBm
Power Supply(transmitter): 1*DC3V CR2032(included)
Transmitting Power: ≤10mW
Ring Volume: ≥70dB
Operating Range: 80m(in the open air)
Sound Options: 36 Polyphonic Melodies

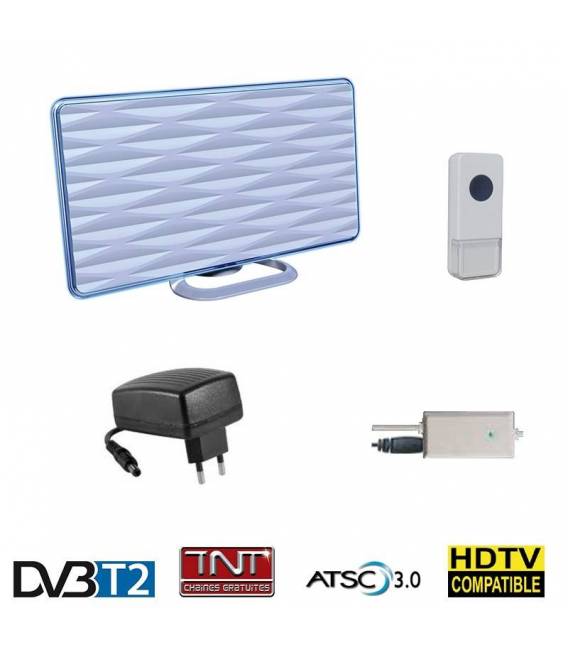

Package :
1. Antenna main unit (Include three buttons:Auto-learning code Button,Volumn Button,Melody Selector)
2. Transmitter (include CR2032 battery)
3. Power adapter(DC 12V/200mA)



Product features :

SMD circuit technology design
Shielded for minimum interference
Built-in high gain and low noise amplifier
Excellent reception for digital, freeview and analog TV signals
Powered by DTV set-top box or included separate power adapter
Stylish and slim flat-panel design with shiny black mirror surface finish
Specially compatible with HDTV of various digital terrestrial (DVB-T, ISDB-T,DMB-T/H, ATSC) and DAB/FM radios.
